CABLE PULLING WINCH

  • AC2500a (1500 / 2500kg),
  • AC2500b (1500 / 2500kg)
  • 110v or 240v x 1ph

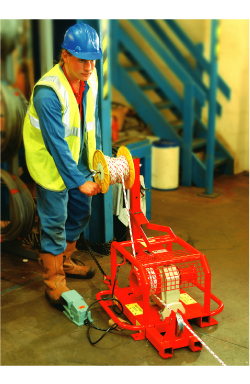

Available as 110v or 240v options, the CABLE•PULLER provides the perfect solution to installing long or heavy lengths of cable in difficult locations. CABLE•PULLER takes the strain and makes the job easier. It reduces manpower hours required to meet installation deadlines, and is safer and faster. Suitable for continuous pulling to tackle the toughest pulling applications.

file_downloadBrochure file_downloadManual mailEnquire

FEATURES INCLUDE

  • Dual capstan heads
    Will haul up to 2500kg and 1500kg
  • Two speed options
    According to the capstan head selected
  • Easily transportable on site
    Using either the removeable wheels or carry handles
  • All round tubular frame
    Strong and makes it simple to hold by attaching restraining straps to the shackles provided or using ground stakes t.hrough the intergral side lugs
  • Foot controlled
    For efficient control – leaves the hands free for cable spooling
  • Cable storage reel
  • Case hardened gear train for maximum efficiency
  • High efficiency heavy-duty ball bearings on all running surfaces
  • Overload protection ensures automatic shut down
  • Electromagnetic spring-applied fail safe brake
  • Rugged high power induction motor to ensure reliability

ADDITIONAL EQUIPMENT

  • Pulling socks
  • Cable support rollers
  • Double braid high tensile flexible rope with minimal elongation
