T-MAX EW6500 1.7 Tonne Electric Winch
T-MAX EW6500 1.7 Tonne 12v DC Electric Recovery Winch.
1700kg (16.67kN) Line Pull.
Conforming to EN14492-1 regulations Power Driven Winches
TYPICAL USES: Light Duty Car Recovery and Plant Moving Vehicles.
The T-MAX EW6500 1.7 tonne 12v DC compact low profile electric DC planetary winch has been developed for light industrial use. It comes supplied with a load limiter, wanderlead, roller guild and solenoid box.
features include
- EN14492-1 compliant
- Torque load Limiter
Supplied as standard - 3 stage planetary gearing
Providing high mechanical efficiency - Sealed Heavy Duty Solenoid
- Powerful series wound, high torque 12v motor
- Wanderlead included
- Automatic failsafe brake
- Freespool clutch lever
Easy to operate lever disengages drum - 4 way roller guides and mounting plate
- Secure wire rope anchorage
Simple thread and wrap system for safe installation of wire rope
ADDITIONAL EQUIPMENT & SERVICES
- BHW WINCH CONTROL SYSTEM
- Electric isolator switch
- Auxiliary industrial extension plug and socket kit for wanderlead connection
- Fuse and fuse holder
- Snatch block
- Radio Control Unit
- Full or partial fitting can be provided, including load testing and certification

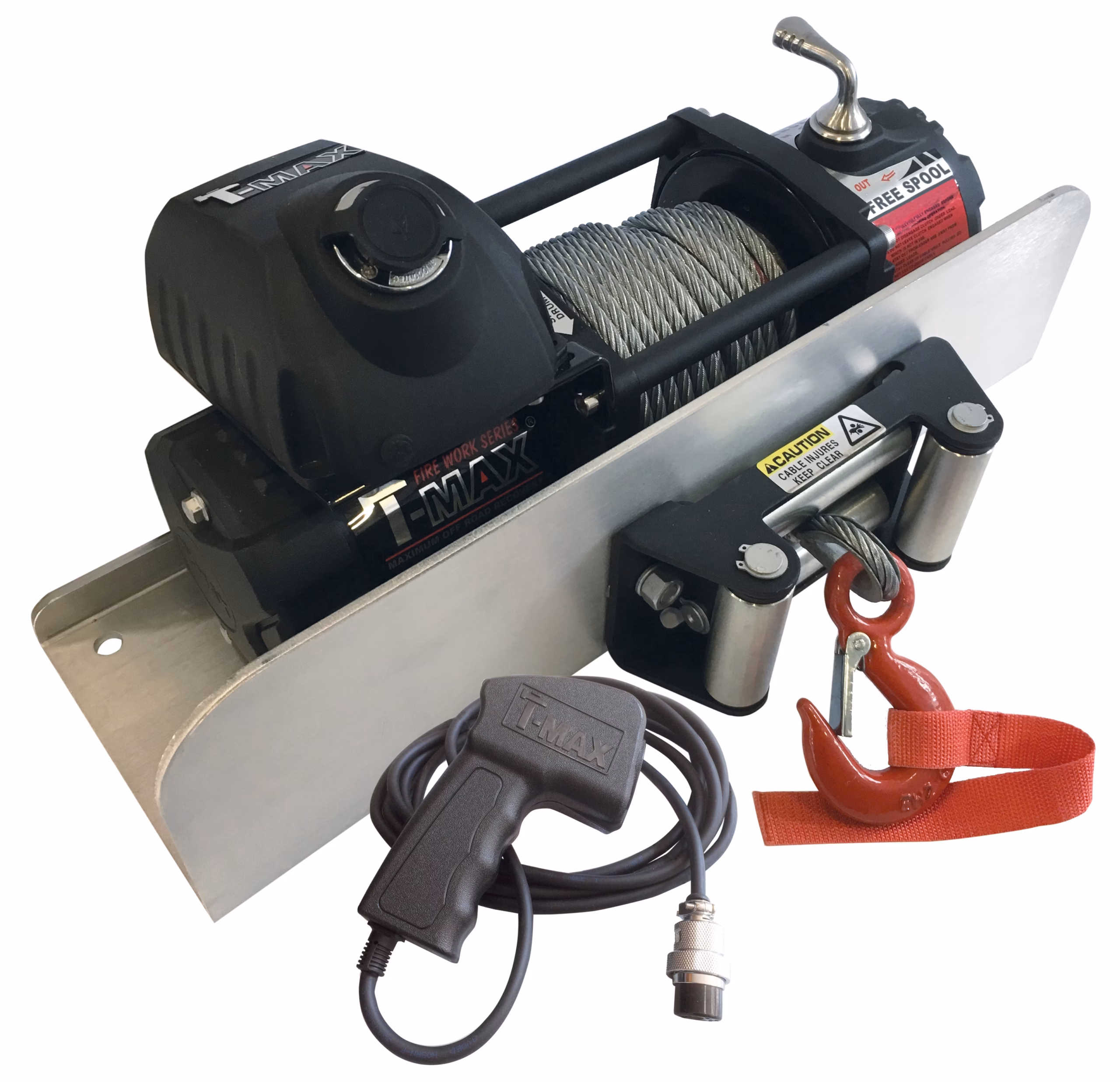

T-MAX EW6500 KIT COMPRISES
Electric Winch, load limiter, 3. 7m wanderlead, roller guides and 8mm galvanised 1960Nmm2 grade 6×36 core wire rope with safety latch hook.
Total kit weight 30kg.
