Electric Scaffold Hoists 80kg / 160kg / 230kg / 300kg
BHW sells lightweight, electric compact hoists across the UK that are an ideal product for lifting heights up to 30 metres. The electric hoists are single phase, 240v or 110v, easily used on scaffolds or jib arms with astonishing efficiency. There is also a built-in limiter on the hoist to prevent it from overwinding.
- CWS-80 (80kg), CWS-160 (160kg),
- CWS-230 (230kg) CWS-300 (300kg)
- 110v or 240v x 1ph AC
An optional extra of a radio remote control is also available and it comes with a spring-loaded safety lock on top fixing as standard. Enquire today and a member of the UK team will be in touch to discuss your requirements and sale.
features include
These electric scaffold hoists come with the following features:
- Available in 110v and 240v x 1ph options
CWS80 / 160 / 230 = 110v & 240v CWS300 = 240v only - Fully compliant with BS EN14492 Hoists Directive
- Dynamic and mechanical brake
Provides instant and safe braking - Lightweight and compact design
For easy handling and installation - Operates on standard 240v x 1ph power supply
In the case of 110v version – via transformer - Automatic overwind limiter
Automatically stops overwinding into the hoist casing during lifting - Reverse winding limiter
To prevent the wire rope to be wound back into the casing in reverse. - Supplied complete with non spin wire rope
7 x 18 wire core, galvanised finish for longer life - 360° weighted safety hook
Swivel type with safety catch - Spring loaded safety lock
For secure attachment to scaffold - Motor rating IP44
Brush type motor - 10 metre plug in pendant control IP65 rating
2 button plus emergency stop - 5 metre power lead with commercial type 3 pin plug
For either 240v or 110v models
STANDARDS & BHW GROUP LIMITED
In addition to the built-in features, these hoists offer a range of optional extras to streamline your project:

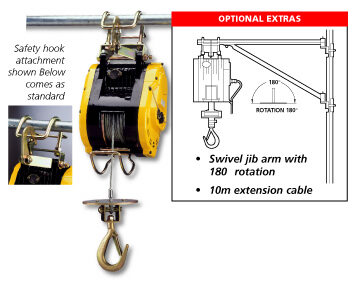

- Scaffold supported jib arm with180º rotation
Load tested to 230kg (not available for 300kg) - Pendant control extension
Plug in for additional 10 metre length - Radio remote control
WK100S plug and play radio remote
TESTED & CE CERTIFIED BY THE BUSHEY HALL WINCHMASTER
Hoists and winches from the Bushey Hall Winchmaster are rigorously tested against competitor brands and UKCA and CE certified. Our aim is to provide the best machinery suited to particular applications that ensure maximum efficiency, good duty cycles and a long working life.
Our sales engineers are available to discuss particular requirements and offer a wide range of suitable, professional recommendations.
BHW Group distributes a wide range of scaffold hoists designed for safe and efficient lifting. Whether you need an electric scaffold hoist for increased speed or a manual option for smaller jobs, we provide reliable solutions to suit all your project requirements. Browse our range of electric scaffolding hoists here, or enquire here and a member of the team will be in touch.
